Contact Angle Measuring Instrument

Operating

Model：	SDC-200
Function：	It is mainly used to measure the contact angle on the surface of objects. By testing the water droplet contact angle, key performance indicators such as surface adhesion, bonding property, hydrophobicity and cleanliness of the object can be analyzed and evaluated.
Engineer：	Shen / +86-21- 34207734-8010 / shenyunliang@1
Location：	East Area – Thin Film IV
Equipment ID：	EFM3CAM01

Reservation

Basic Equipment Information
Operating Principle
Typical Application Case

Main Application

The contact angle formed by liquid on a solid surface is used to analyze and evaluate key indicators of the sample surface, including adhesion, bonding performance, hydrophobicity and cleanliness.

Process/Testing Capabilities

Sample size: less than 6 inches;
It is mainly used to measure the contact angle on material surfaces. The water droplet contact angle is adopted to analyze and evaluate key surface properties such as adhesion, bonding performance, hydrophobicity and cleanliness.

Technical Specifications

Contact angle measurement range: 0–180°.
Contact angle measurement resolution accuracy: ±0.001°.
Contact angle test accuracy: ±1°.
Surface and interfacial tension measurement range: 0–5000 mN/m.
Surface and interfacial tension measurement accuracy: 0.01 mN/m.

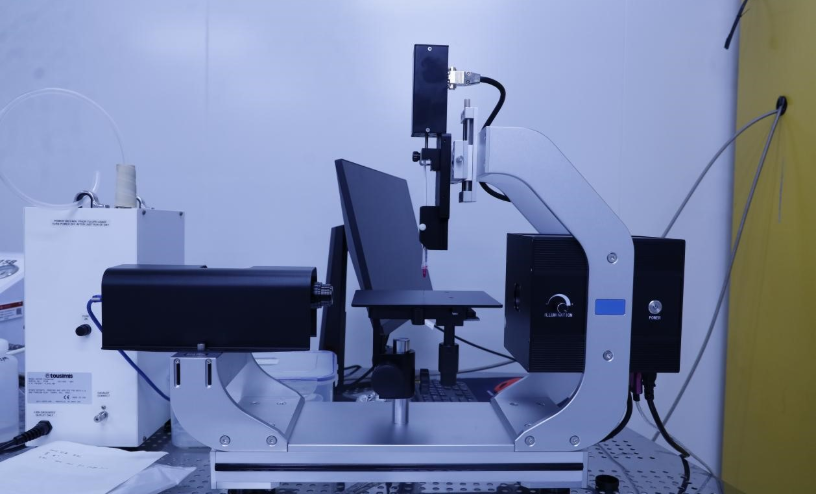

As shown in the figure above, the contact angle measuring instrument is mainly composed of five core parts: light source, injection unit, sample stage, acquisition system and analysis software, which adopts the principle of optical imaging.The light source adopts a dense LED cold light design with uniform illumination, clear imaging and long service life.The injection unit uses a high-precision syringe pump for liquid feeding, which is quantitatively and speed-controlled by software, featuring stable droplet output with a precision up to 0.01 μL.The sample stage is a 3D manually fine-tuning platform with flexible operation and accurate positioning, and it can be customized according to the actual sample size.The acquisition system is equipped with an imported black-and-white CCD camera, delivering stable shooting, clear and highly authentic images. The lens adopts German industrial-grade imported configuration with an adjustable magnification of 0.7–4.5 times, achieving distortion-free imaging.

Contact Angle Test Diagram of Nanoimprint Sample Surface

Sample size is less than 6 inches.

1. Sample size < 6 inches; keep the sample backside clean, and close the software after use.

2. Do not touch the instrument or operate the computer while the device is running, to avoid accidental shutdown or malfunction caused by misoperation.

3. In case of equipment alarm, please notify the corresponding equipment engineer in time.

The list below shows FAQs (click a question to view the answer). If your question is not listed, you can leave a message using the link.

FAQs

01

What measurement methods are available for superhydrophobic samples?

Other organic solutions such as alcohol and acetone can be used if permitted by the conditions of the sample surface.
