Resistive Thermal Evaporation Coating System

Home > Facilities > Micro-/Nano Fabrication > Thin Film Deposition > Resistance Heating Evaporation

Equipment Information Guidelines for Contract Processing Inquiry

Resistance Heating Evaporation

Operating

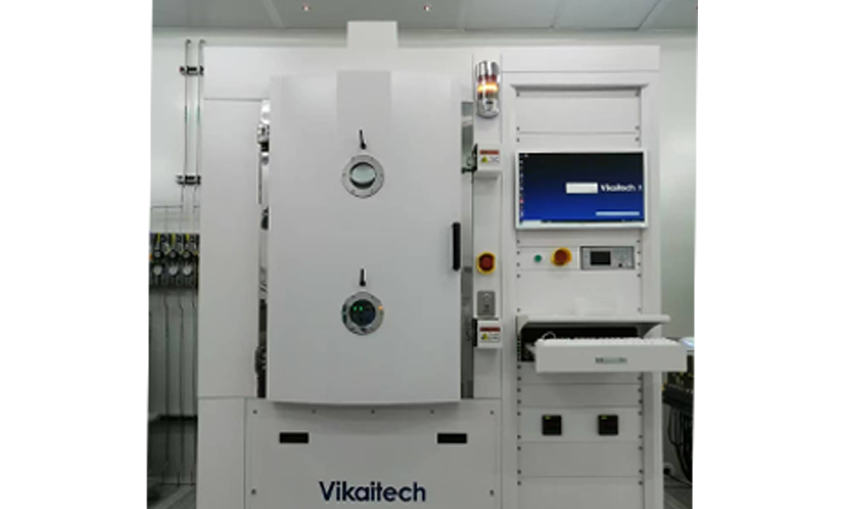

Model：	T550D
Function：	It enables the deposition of high-quality gold films, silver films, and low-melting-point compound films such as MgF2, WO3 and ZnS at room temperature.
Engineer：	Fu / +86-21- 34206126-6010 / xuecheng.f@1
Location：	East Area – Thin Film IV
Equipment ID：	EFM3RHE01

Reservation

Basic Equipment Information
Operating Principle
Typical Application Case

Main Application

Adopting electric heating to melt the materials to be evaporated, the system enables the deposition of high-quality gold films, silver films, and low-melting-point compound films such as MgF2、WO3、ZnS, and on substrates at room temperature.

Process/Testing Capability

1. The equipment supports the processing of samples with a size below 8 inches;

2. The thickness of evaporated thin films shall not exceed 500 nm;

3. The non-uniformity of deposited samples is within ±5% for 8-inch samples (excluding aluminum).

Technical Specifications

1. The non-uniformity of deposited aluminum samples is within ±7% for 8-inch substrates;

2. The non-uniformity of deposited gold and silver films is within ±3% for 8-inch substrates.

With resistive heating, high melting point metals (such as tungsten, molybdenum, tantalum, etc.) are fabricated into evaporation sources. The Joule heat generated by high current passing through the evaporation source is used to directly heat and evaporate the coating materials, or to realize indirect heating and evaporation in crucibles, so that the materials can deposit and form thin films on the substrate surface.

The 100 nm gold film deposited by the resistive heating evaporation equipment eliminates discharge spattering and delivers superior film quality.

1.The thickness of deposited thin films shall not exceed 500 nm;

2.A maximum of two types of thin films can be deposited in a single batch.

The list below shows FAQs (click a question to view the answer). If your question is not listed, you can leave a message using the link.

FAQs

01

What are the disadvantages of this equipment compared with electron beam heating evaporation equipment?

1.The volume of the tungsten boat is small, which limits the thickness of deposited thin films.

2.Its effective power is lower than that of electron beam evaporation, making it more difficult to evaporate high melting point materials.
02

What are the advantages of this equipment compared with electron beam heating evaporation equipment?

Electric heating avoids material spattering caused by electron accumulation, which ensures excellent coating quality.
03

What is the difference between resistive heating evaporation and electron beam heating evaporation?

Materials for electron beam heating need to be conductive. For insulating materials, static charges cannot be dissipated, resulting in equipment failure to operate continuously.

Message Inquiry

If your question is not listed above, please email us at [email protected] or click the button below to submit an inquiry.
