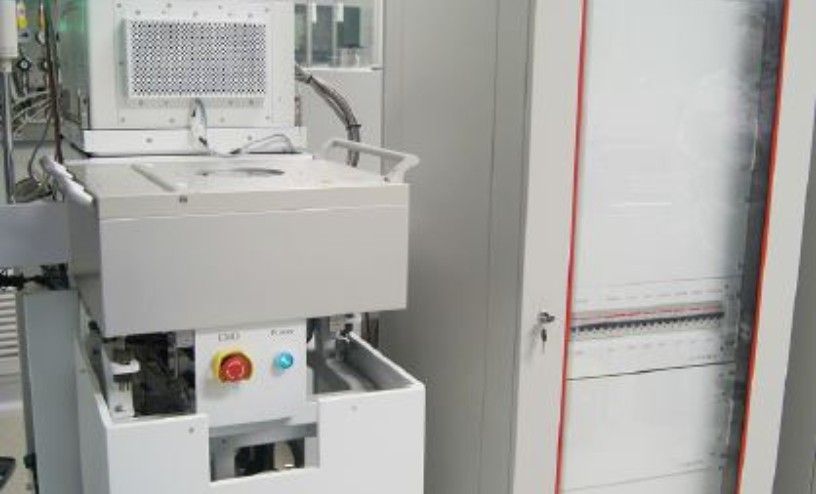

Deep Silicon Etcher

Operating

Model：	DSE200s
Function：	1.Deep silicon etching using Bosch or non-Bosch processes; 2.TSV (Through-Silicon Via) deep silicon etching; 3.Surface silicon structure etching for SOI wafers.
Engineer：	Liu / +86-21- 34206126-6013 / minliu@1
Location：	West Area – Thin Film II
Equipment ID：	WF2NDSE02

Reservation

Basic Equipment Information
Operating Principle
Typical Application Case

Main Application

This system is primarily used for deep silicon etching and supports both Bosch and non-Bosch processes, enabling broad process coverage.

It is equipped with advanced fast-response hardware and optimized software control specifically designed for Bosch cyclic processing. Combined with advanced process technologies, the system delivers excellent performance for high-aspect-ratio etching, meeting a wide range of process requirements.

Process / Testing Capabilities

Maximum etch rate: ~6 μm/min. Selectivity to photoresist: up to 50:1. Aspect ratio: >30:1. Sidewall roughness: <50 nm.

Technical Specifications

Designed for 6-inch wafers; compatible with 4-inch, 3-inch wafers and irregular samples. Supports diced samples (with carrier wafer mounting). Applicable to glass substrates such as SOG (Spin-On Glass).

The Bosch process is a cyclic etching technique used in semiconductor manufacturing to suppress lateral etching. It alternates between etching and sidewall passivation steps, depositing a protective film on sidewalls to maintain anisotropic profiles.

This method, originally proposed by Robert Bosch, enables deep silicon etching with high aspect ratios and well-defined vertical structures.

Deep silicon etching for MEMS device fabrication.

Primarily used for deep silicon etching. Samples larger than 6 inches are not accepted. Non-standard wafers or diced samples must be mounted onto carrier wafers for processing.

The list below shows FAQs (click a question to view the answer). If your question is not listed, you can leave a message using the link.

FAQs

01

What mask materials are supported?

Acceptable mask materials include photoresist, silicon dioxide (SiO₂), and silicon nitride (Si₃N₄) hard masks. Metal masks are not permitted.

Message Inquiry

If your question is not listed above, please email us at [email protected] or click the button below to submit an inquiry.

Email Inquiry

Note: "@1" represents "@sjtu.edu.cn"
