Microwave Plasma Asher

Home > Facilities > Micro-/Nano Fabrication > Dry Etching > Microwave Plasma Ashing Machine

Equipment Information Guidelines for Contract Processing Inquiry

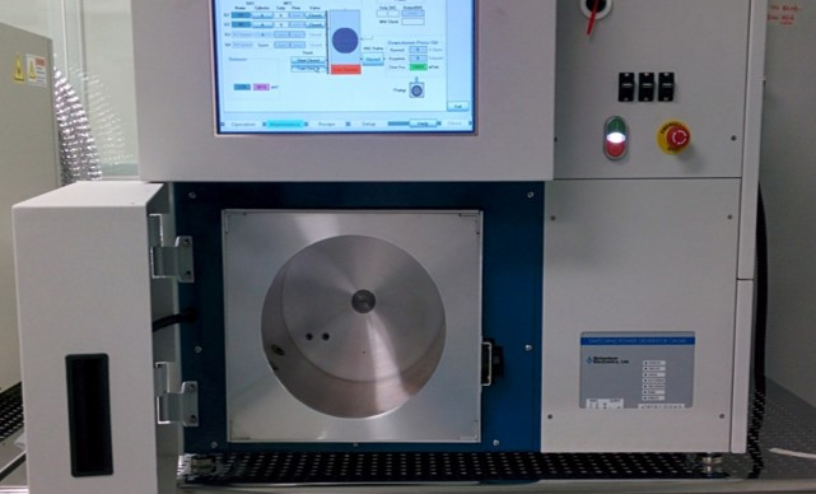

Microwave Plasma Ashing Machine

Operating

Model：	ION wave10
Function：	1.Photoresist ashing (stripping) after dry etching;2.Plasma modification on substrate surface;3. Substrate cleaning before photoresist coating to remove organic contaminants.
Engineer：	Liu / +86-21- 34206126-6013 / minliu@1
Location：	West Area – Thin Film II
Equipment ID：	WF2PASH01

Reservation

Basic Equipment Information
Operating Principle
Typical Application Case

Main Application

Microwave plasma photoresist stripper is mainly used for the chemical dry removal of various photoresists and substrate cleaning. Adopting a chemical etching working mode, it can achieve low damage to the substrate.

Process / Testing Capabilities

Capable of removing various positive and negative photoresists;
Able to eliminate a wide range of organic contaminants;
Realize substrate surface modification, such as conversion between hydrophilicity and hydrophobicity;
Photoresist removal rate: 0.2~0.4 μm/min;
Etching mode: chemical etching.

Technical Specifications

Internal dimensions of reaction chamber: diameter 248 mm, depth 245 mm;
Compatible with 8-inch and smaller samples; process gases: N₂, O₂;
Maximum power: 600 W;
Microwave frequency: 2.45GHz;
Maximum batch capacity: 25 pieces of 6-inch wafers;
Chamber material: quartz.

In the quartz chamber, an appropriate amount of oxygen is introduced after vacuum pumping. Excited by the high-frequency electromagnetic field generated by the microwave power supply, oxygen is ionized into active plasma species including O2^-, O2^+, O^-, O^+, atomic oxygen and ozone. Assisted by the high-frequency electric field, these reactive species undergo oxidation reactions with photoresist and other organic materials on the substrate surface, producing highly volatile substances such as CO, CO2 and H2O. These gaseous by-products are exhausted by the vacuum pump to complete photoresist stripping. The corresponding principle is shown in the figure below.

This is a 6-inch silicon wafer coated with photoresist, which is marked with high-temperature adhesive tape for easy observation.

This is the silicon wafer after photoresist stripping, with the photoresist completely removed.

SU-8 photoresist and denatured photoresist cannot be removed. The removal of special photoresists requires prior confirmation.
